MAGUS Metal 630 metallurginen Mikroskooppi

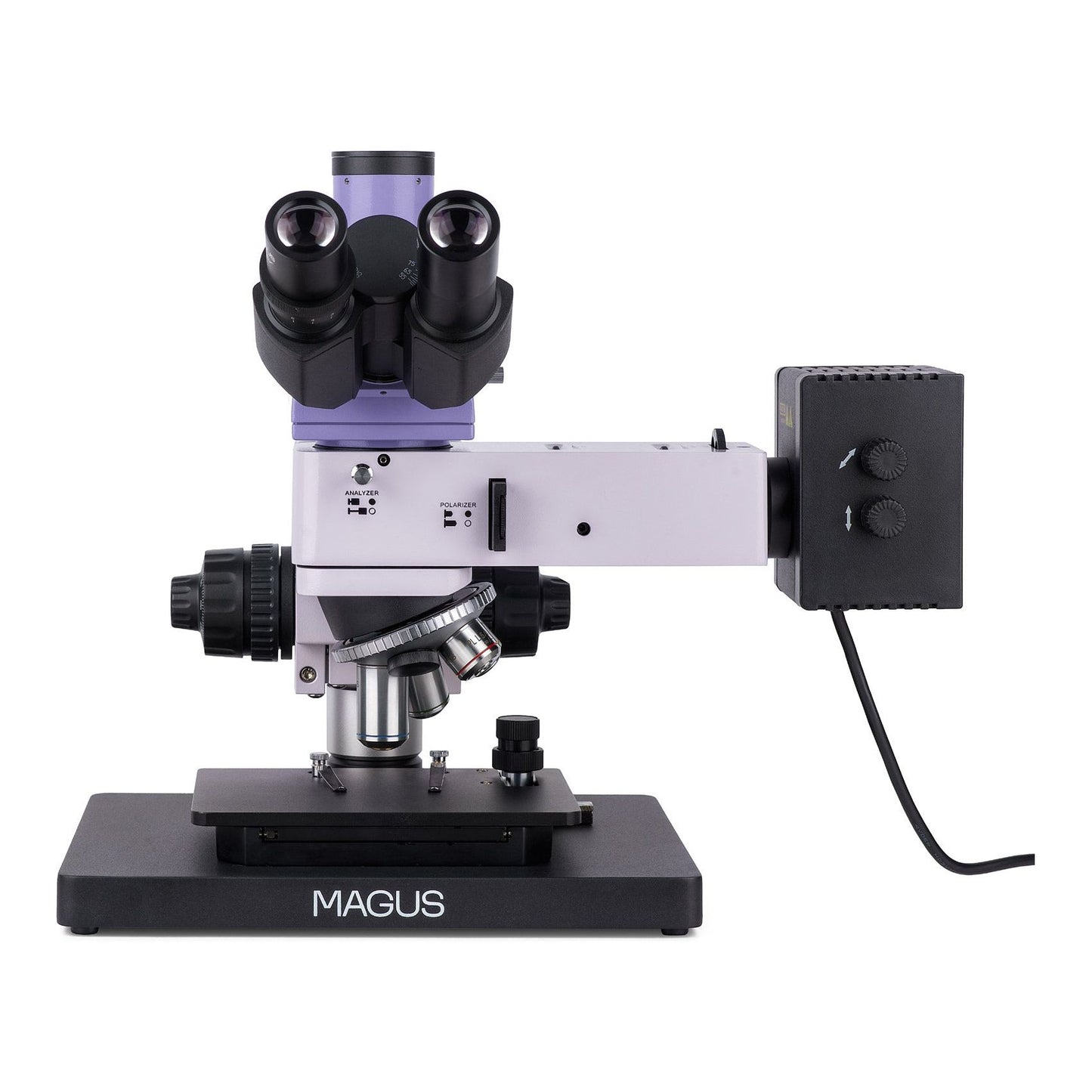

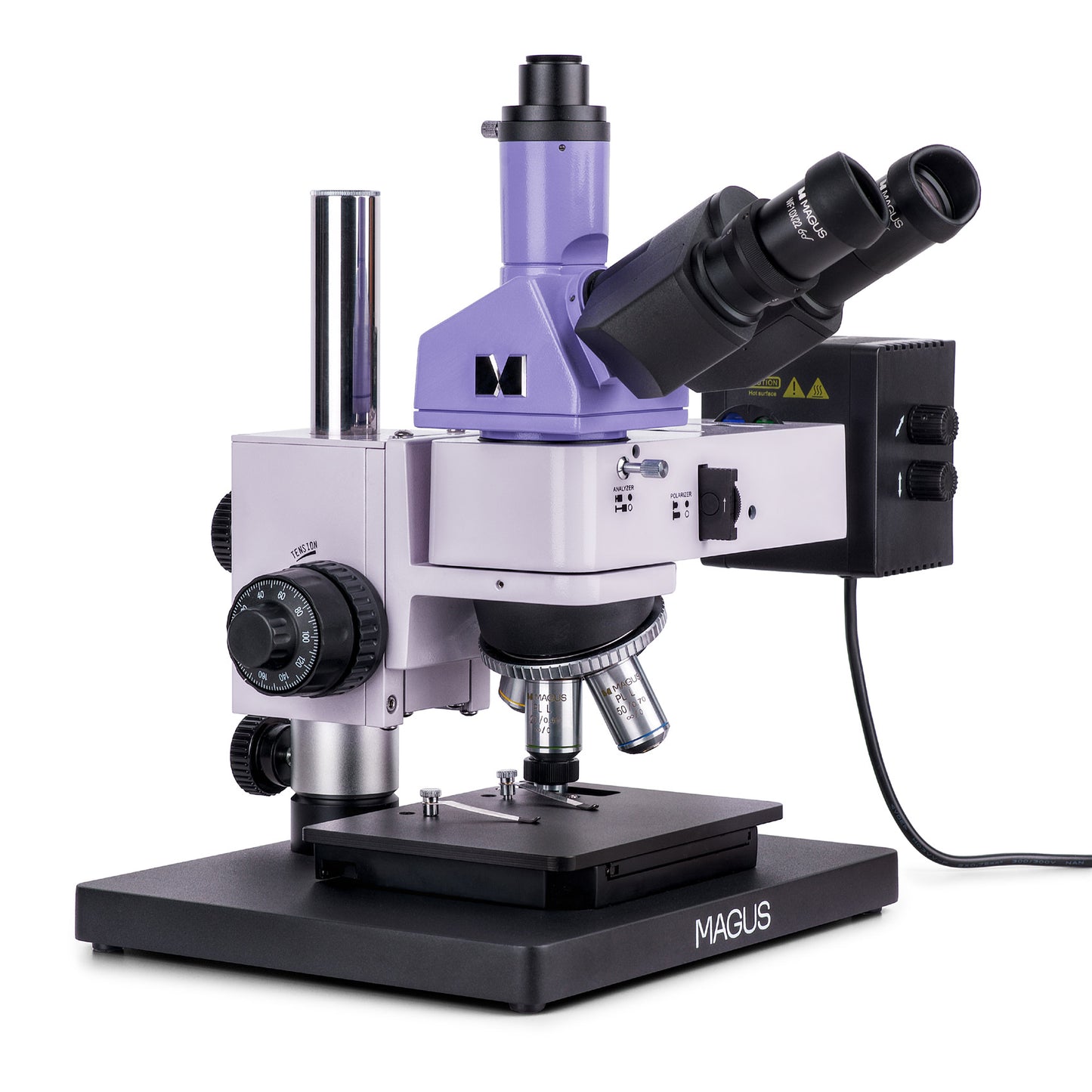

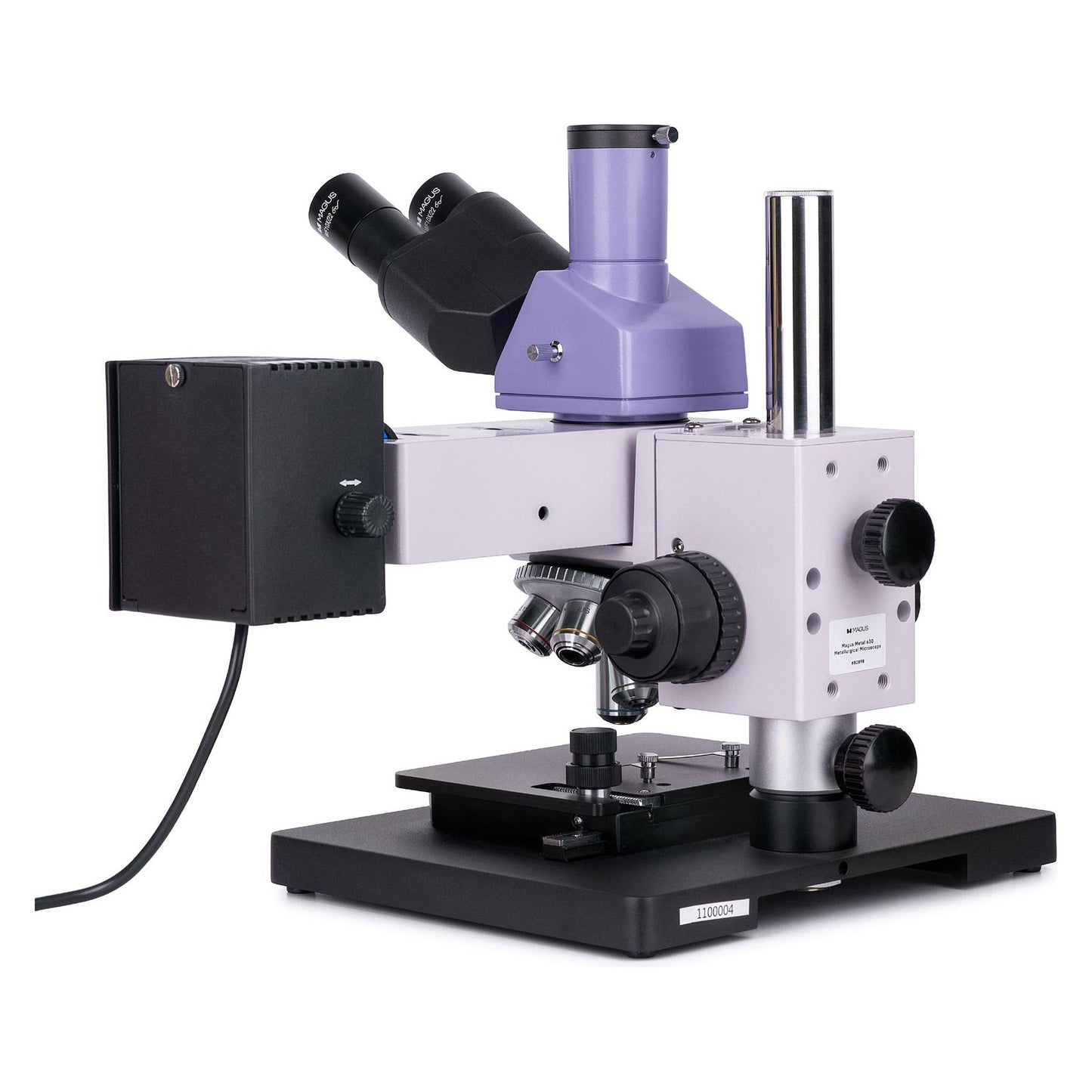

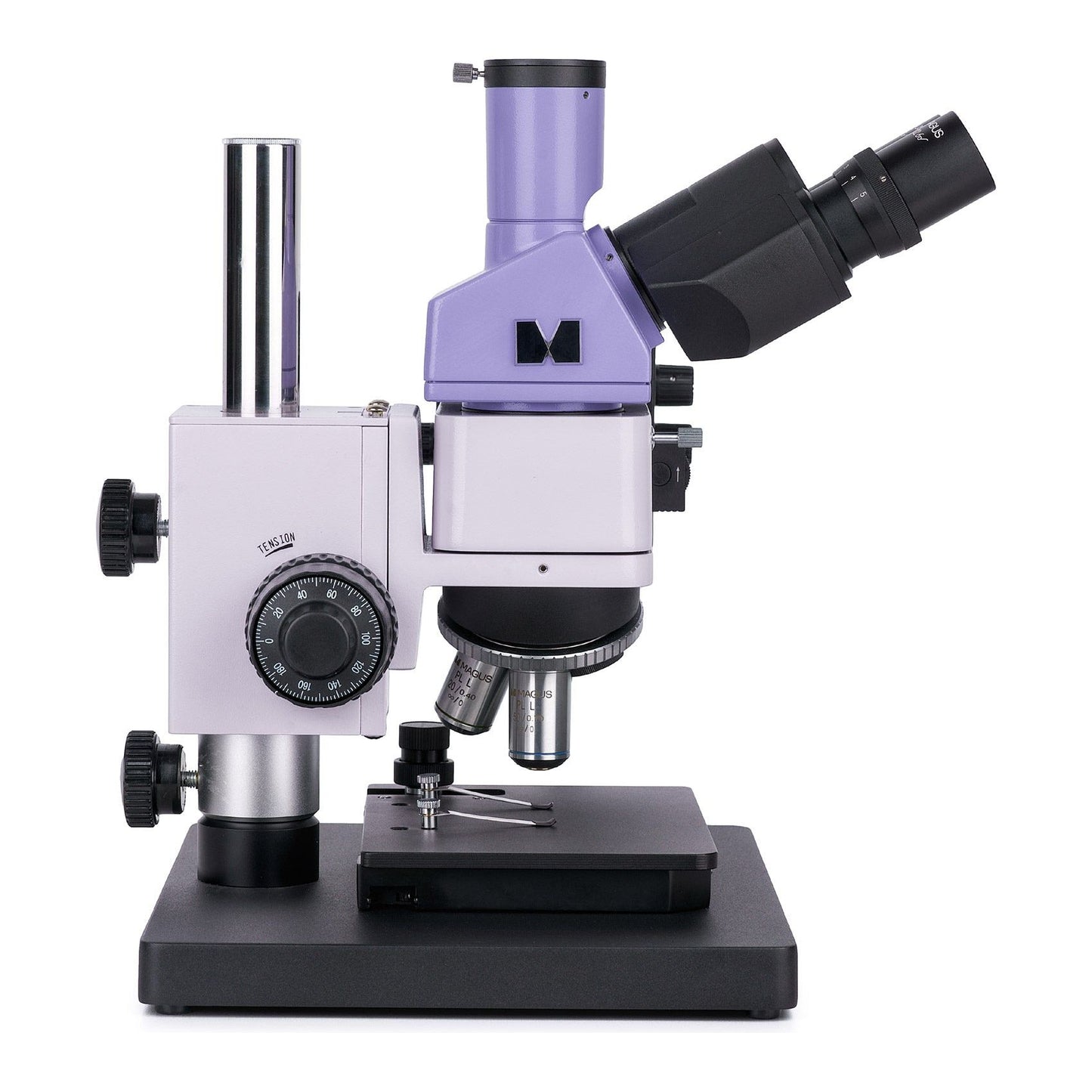

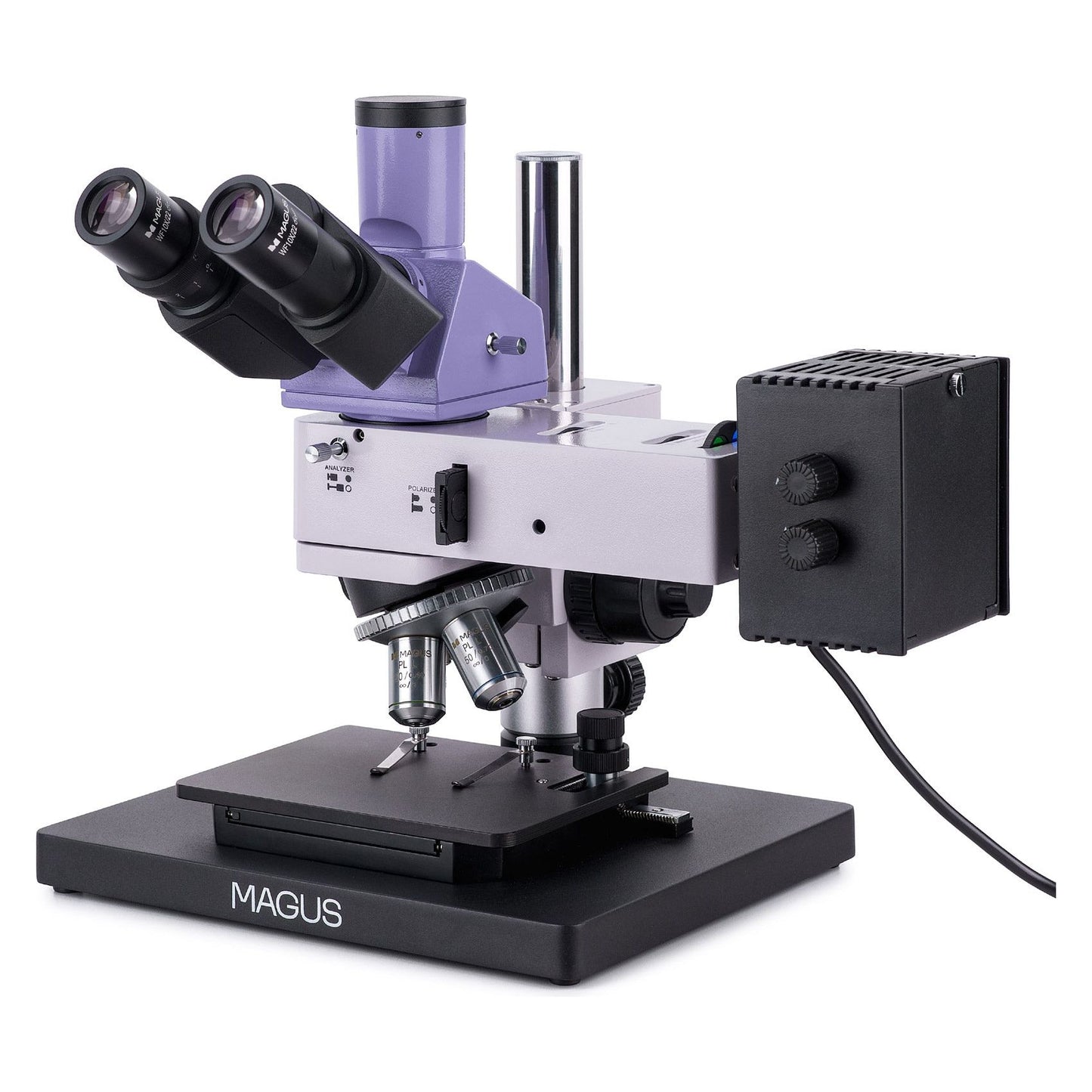

The MAGUS Metal 630 metallurgical reflected light microscope is used to examine the microstructure of opaque objects of any height and size. The objects of study are metals, alloys, semiconductors, and paint coatings. Available microscopy techniques: brightfield and polarized light. One of the advantages of the microscope is its compact size, making it ideal for laboratories with limited working and storage space. MAGUS Metal 630 microscope is an excellent choice for industries in various sectors, research centers, and university departments.

Microscope in use »

Optics

The optics of the microscope are infinity-corrected. The trinocular tube that is used for mounting the camera is located vertically. The light beam can be directed either to the eyepieces or into the trinocular tube. The camera is not included in the basic configuration. It is comfortable to work with this microscope for long hours because the binocular head is 30° inclined. Diopter correction is provided on the left eyepiece to adjust the optics to the user’s eyesight.

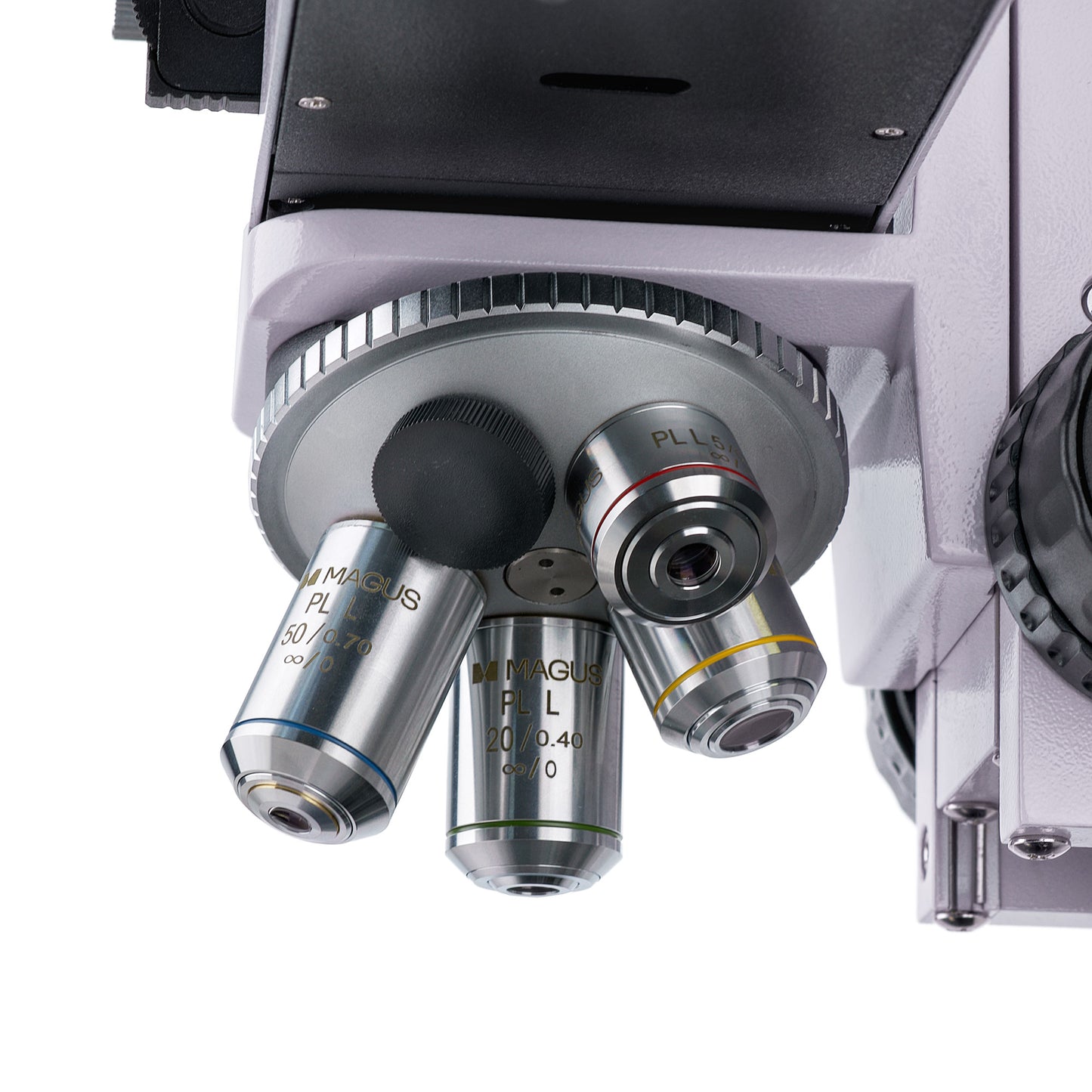

There are 5 slots in the revolving nosepiece. The kit includes 4 plan achromatic objectives. When they are installed, there is one slot left for installing an optional one. The objectives with long working distance are designed for brightfield microscopy.

Illumination

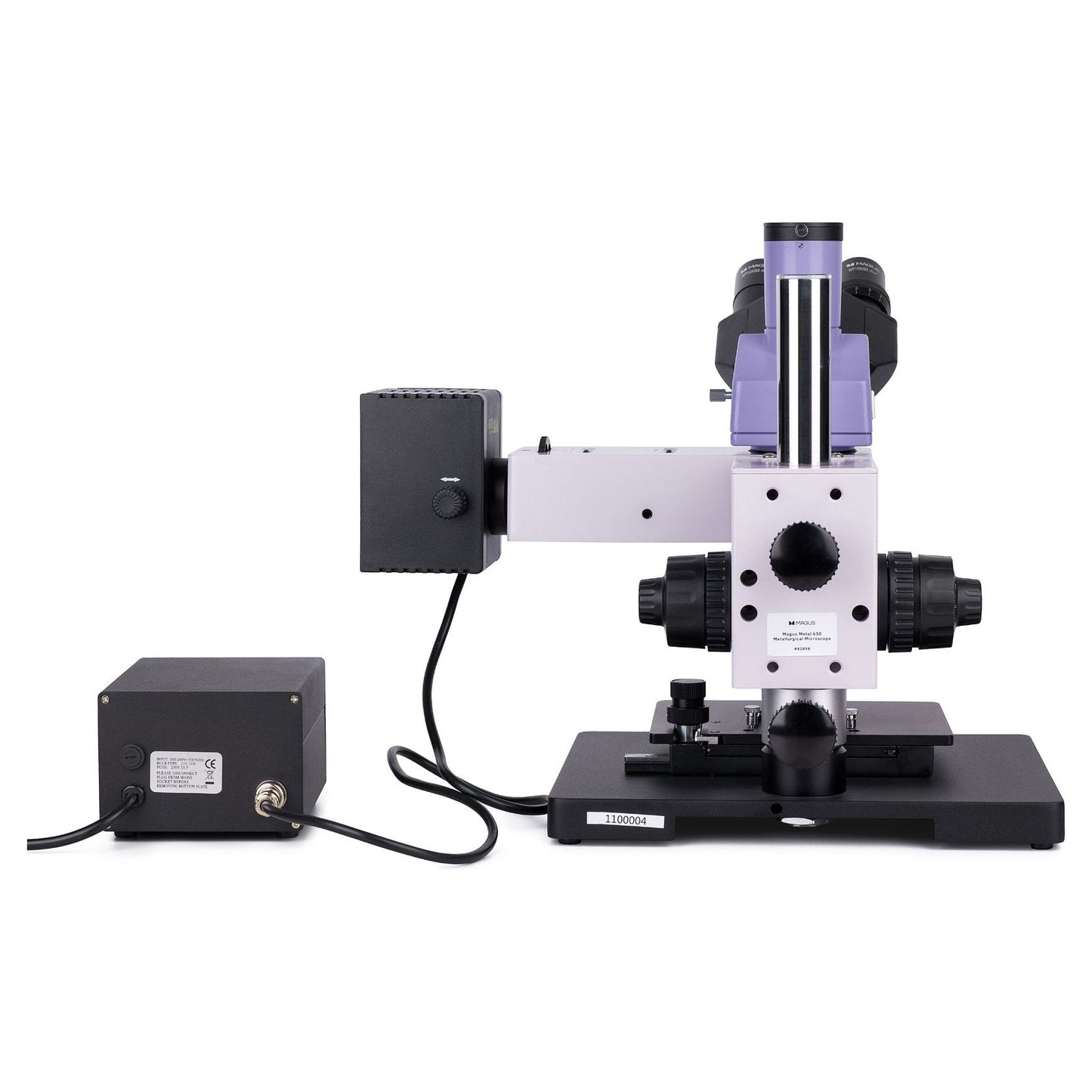

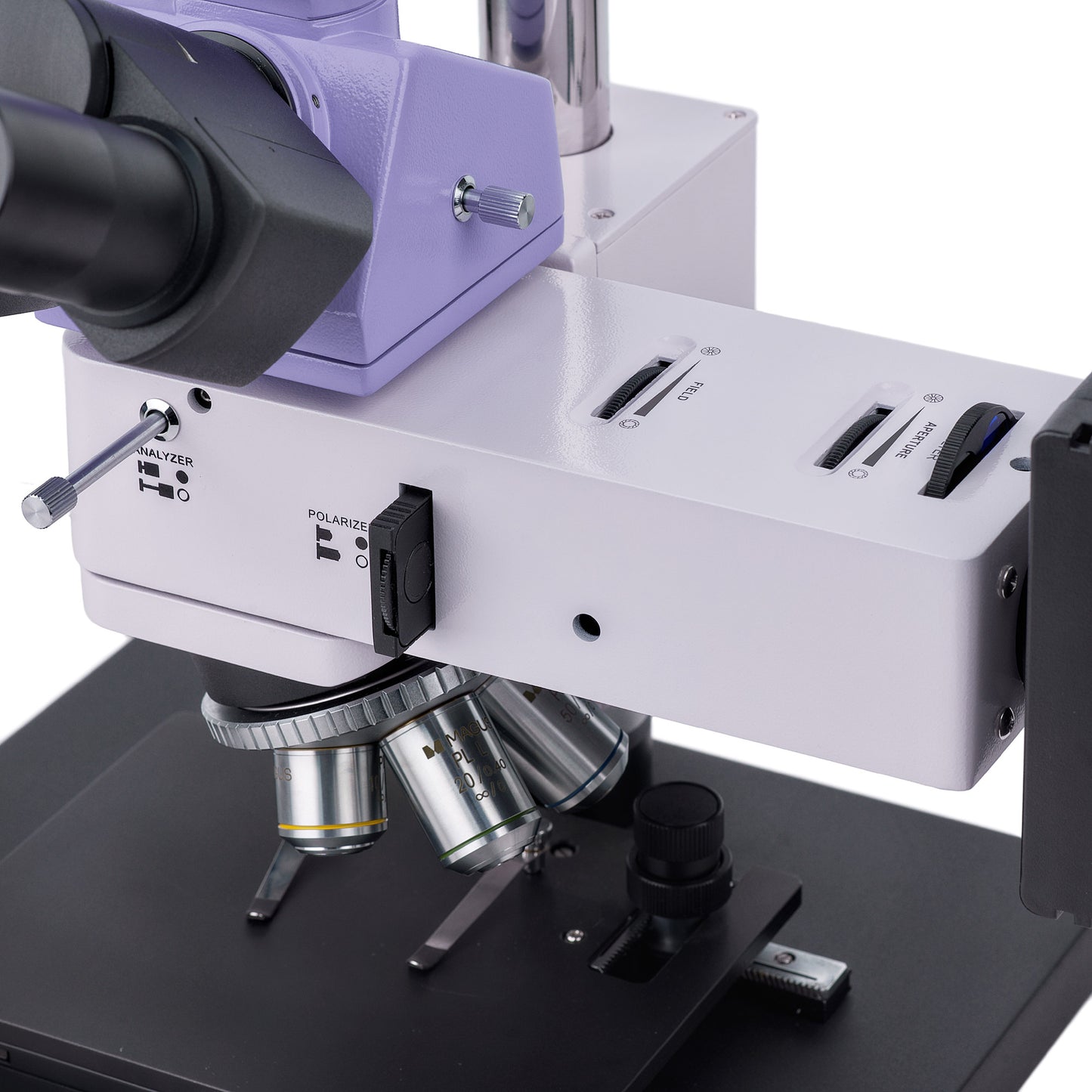

The microscope only uses reflected light illumination. The illumination system includes a polarization device, an aperture diaphragm, and a field diaphragm. Light source: 30W halogen bulb. Its light is comfortable for the eyes, and so it does not contribute to eye fatigue. The diaphragm and light source can be centered, and a Köhler illumination setup is available. There are color filters.

Stage and focusing mechanism

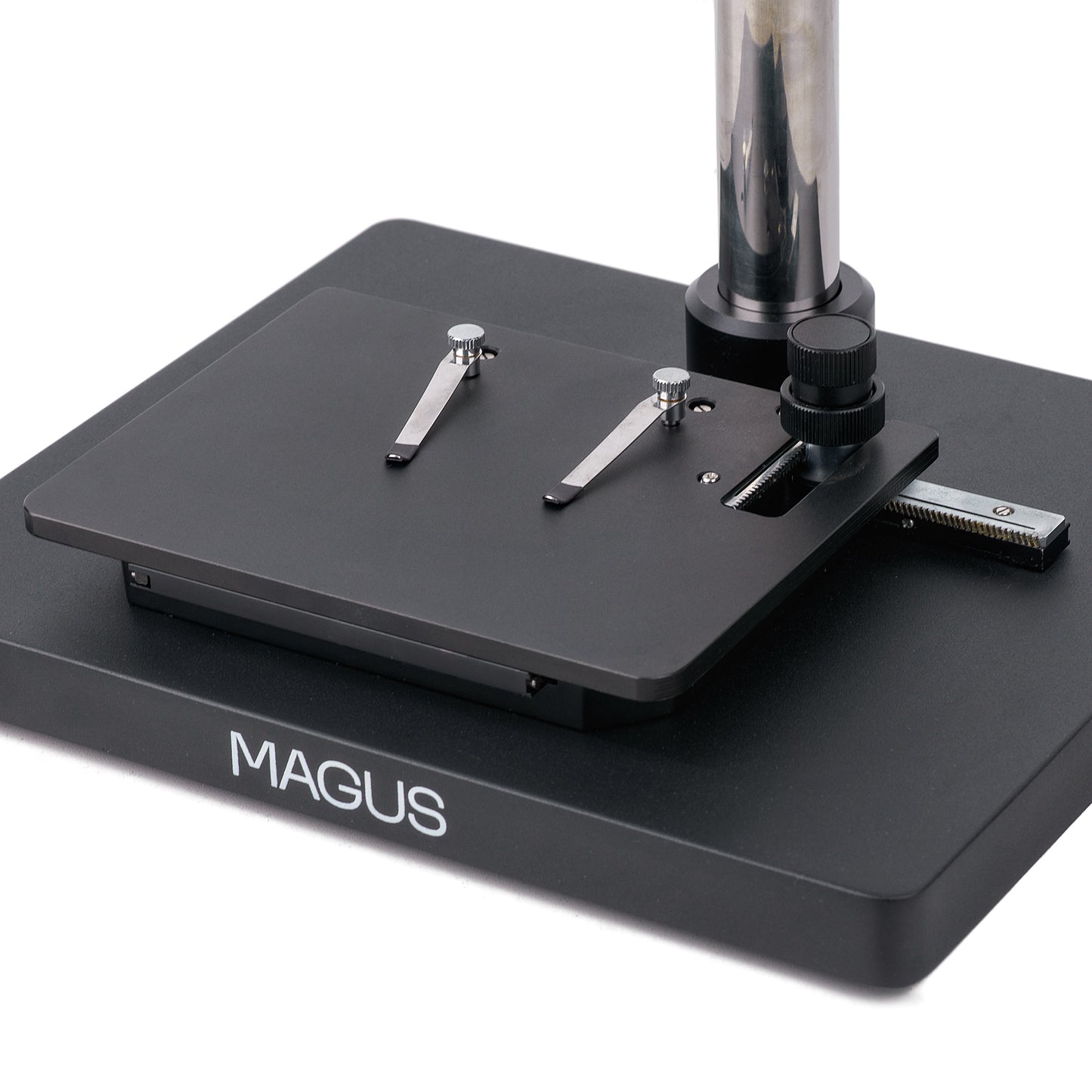

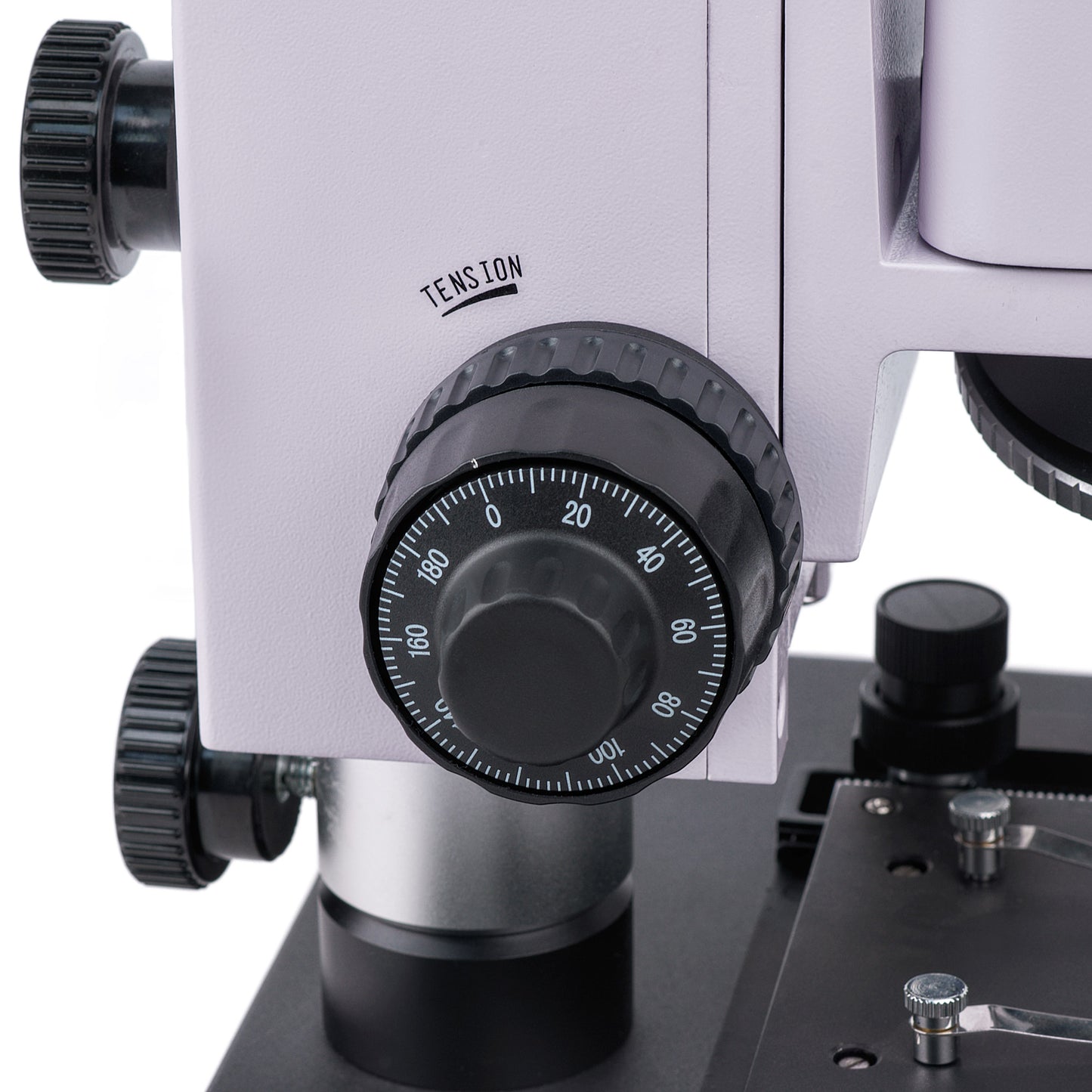

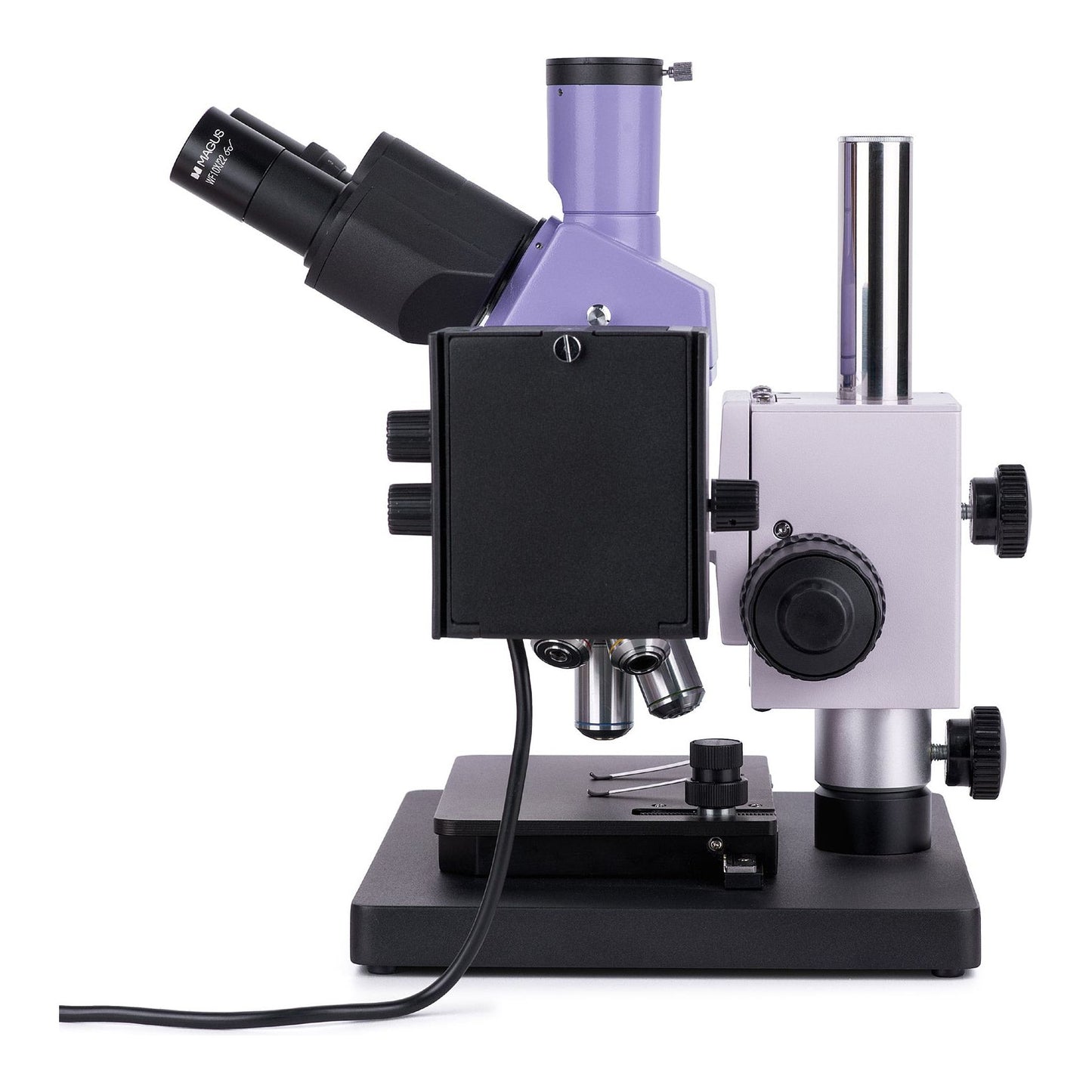

The stand and focusing mechanism of the unique design provide two advantages: compact size and the possibility to observe samples of any height. The microscope can be easily placed on laboratory furniture with a maximum height of 40cm. A two-axis stage is used to examine small specimens. The focusing is adjusted by rotating the coaxial coarse and fine focusing knobs located on both sides of the stand. The mechanisms operate smoothly and accurately. Coarse tension adjustment can also be adjusted.

Accessories

The microscope can be upgraded with optional accessories: long working distance objectives, eyepieces, digital camera, calibration slides.

Key features:

• No restrictions on the sample height and size
• Trinocular head with a trinocular tube for mounting a digital camera and with a 100:0 and 0:100 beam splitter
• 30W halogen bulb with warm light for working in reflected light using brightfield and polarization microscopy techniques
• Color filters, option to set up Köhler illumination, light source, and field and aperture diaphragms that can be centered
• Compact stand for mounting the microscope on small furniture
• Multiple optional accessories

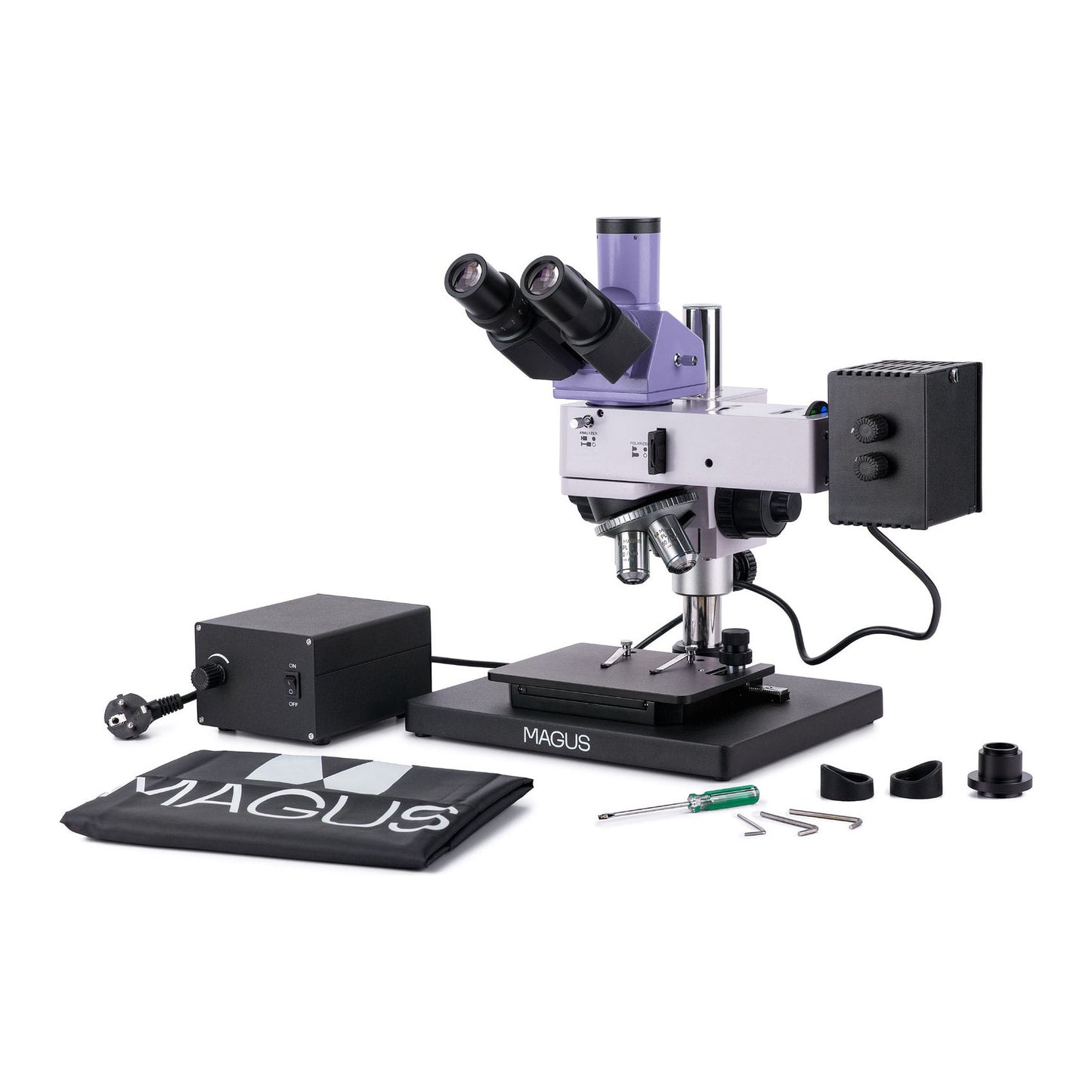

The kit includes:

• Stand with focusing mechanism, stage and revolving nosepiece
• Reflected light illuminator with a lamphouse
• Trinocular head
• Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
• Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
• Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
• Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
• Eyepiece 10x/22mm with long eye relief (2 pcs.)
• C-mount adapter 1x
• Hex key wrench
• Base with a power input
• Power cord
• Reflected light illuminator power cord
• Dust cover
• User manual and warranty card

Available on request:

• 10x/22mm eyepiece with a scale
• 12.5x/14mm eyepiece (2 pcs.)
• 15x/15mm eyepiece (2 pcs.)
• 20x/12mm eyepiece (2 pcs.)
• 25x/9mm eyepiece (2 pcs.)
• Infinity plan achromatic objective: PL L40х/0.60 WD 3.98mm
• Infinity plan achromatic objective: PL L60x/0.70 WD 2.08mm
• Infinity plan achromatic objective: PL L80x/0.80 WD 1.25mm
• Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
• Digital camera
• Calibration slide
