Ermenrich Ping SM100 Kaapelinjäljitin
Ermenrich Ping SM100 Kaapelinjäljitin
Tuotenumero: 84548
Noudon saatavuutta ei voitu ladata
The Ermenrich Ping SM100 is designed for tracing cables in walls and ceilings as well as cables buried underground. The maximum detection depth is 2 meters (6.6ft). The device can find de-energized and energized cables, i.e. it can be used to trace cables hidden under plaster, map cable lines, find drilling locations, etc. The cable tracing is performed with crosstalk protection.

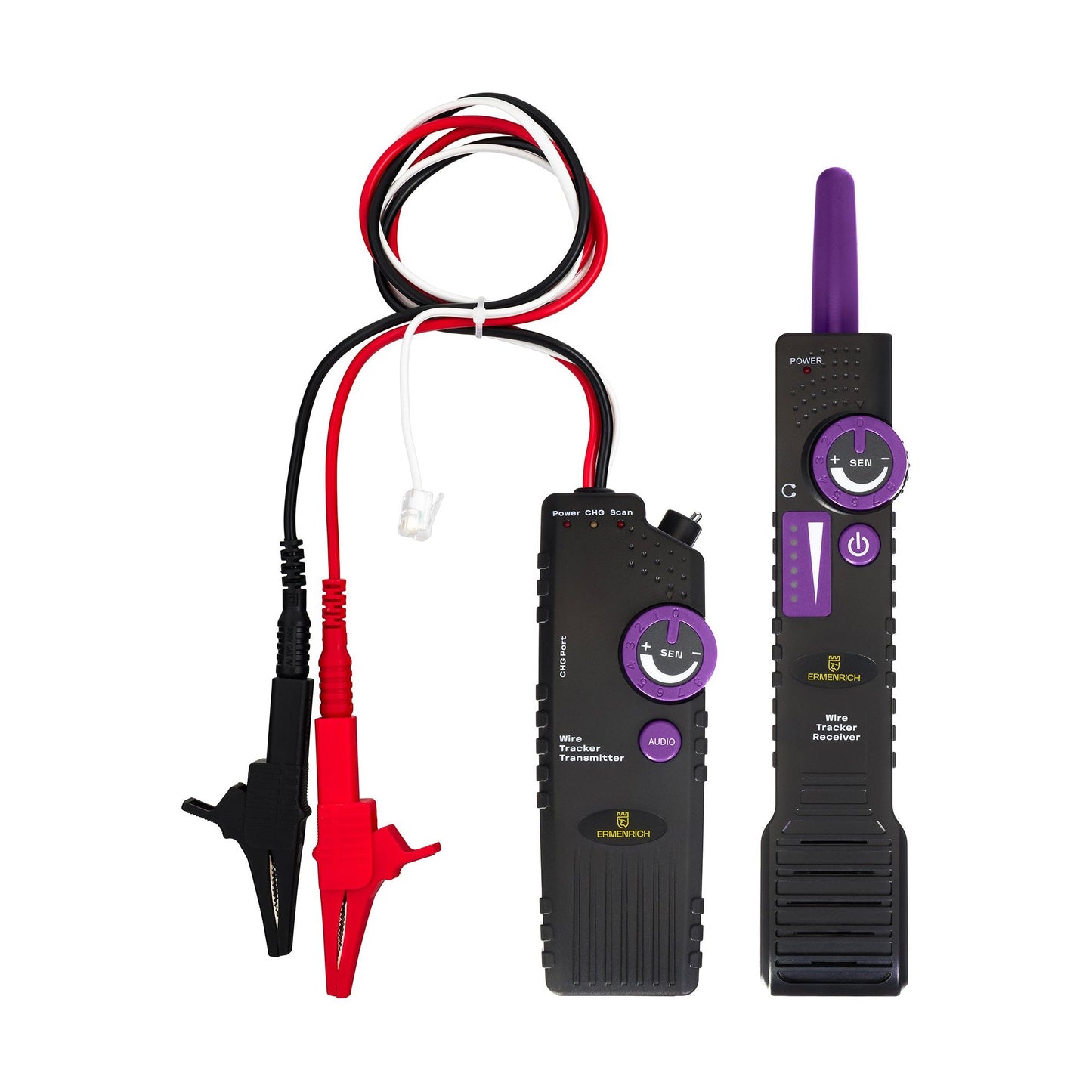

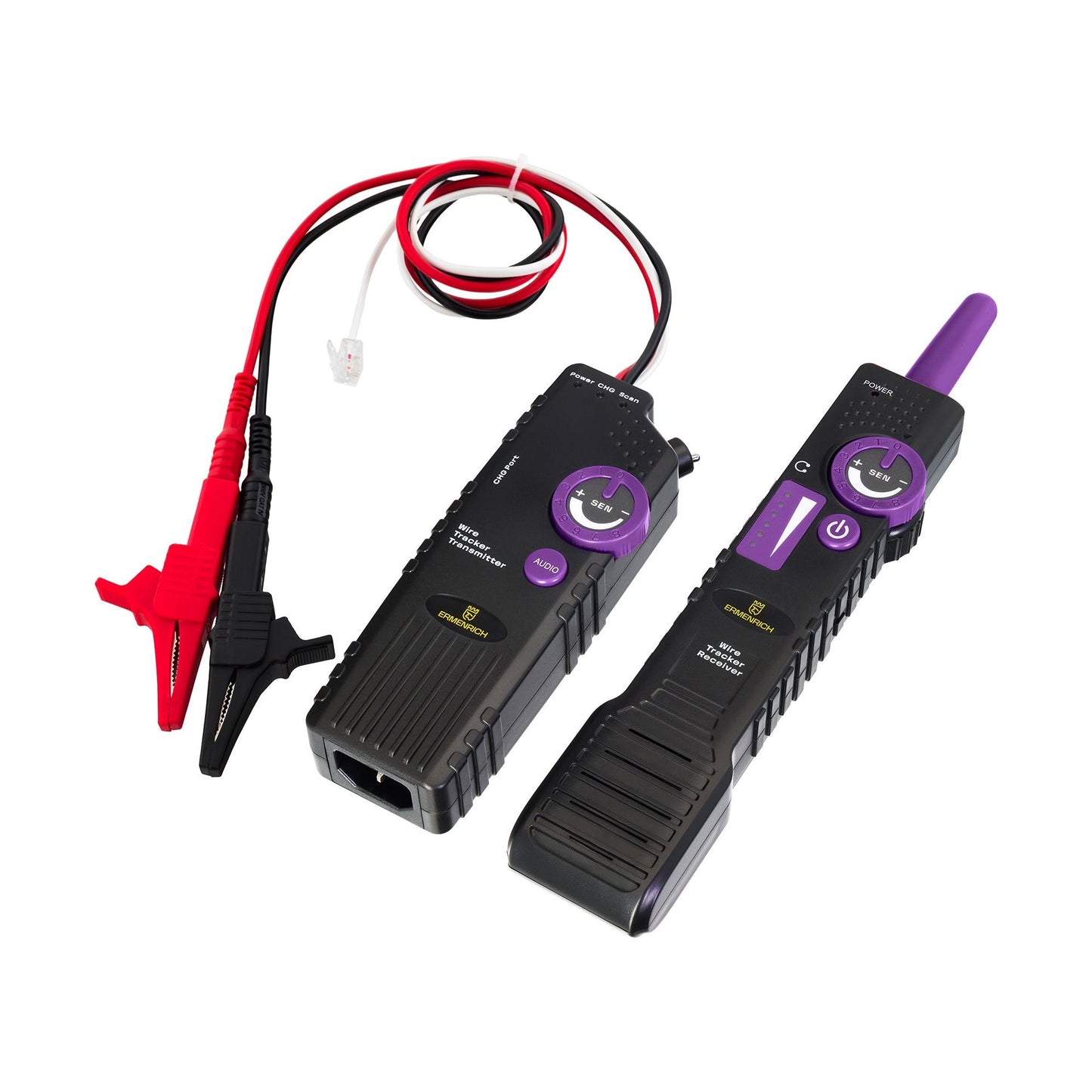

The device includes a transmitter and a receiver, the sensitivity of each unit can be adjusted individually. Both devices are powered by rechargeable batteries, and a charging cable is included. The Ermenrich Ping SM100 comes with earbuds, which will come in handy when working in noisy environments.
Key features:
- For tracing different types of energized and de-energized cables
- Maximum detection depth – 2 meters (6.6ft) (walls, ceilings, ground, etc.)
- Crosstalk protection, transmitter, and receiver sensitivity adjustment
- Powered by a rechargeable battery

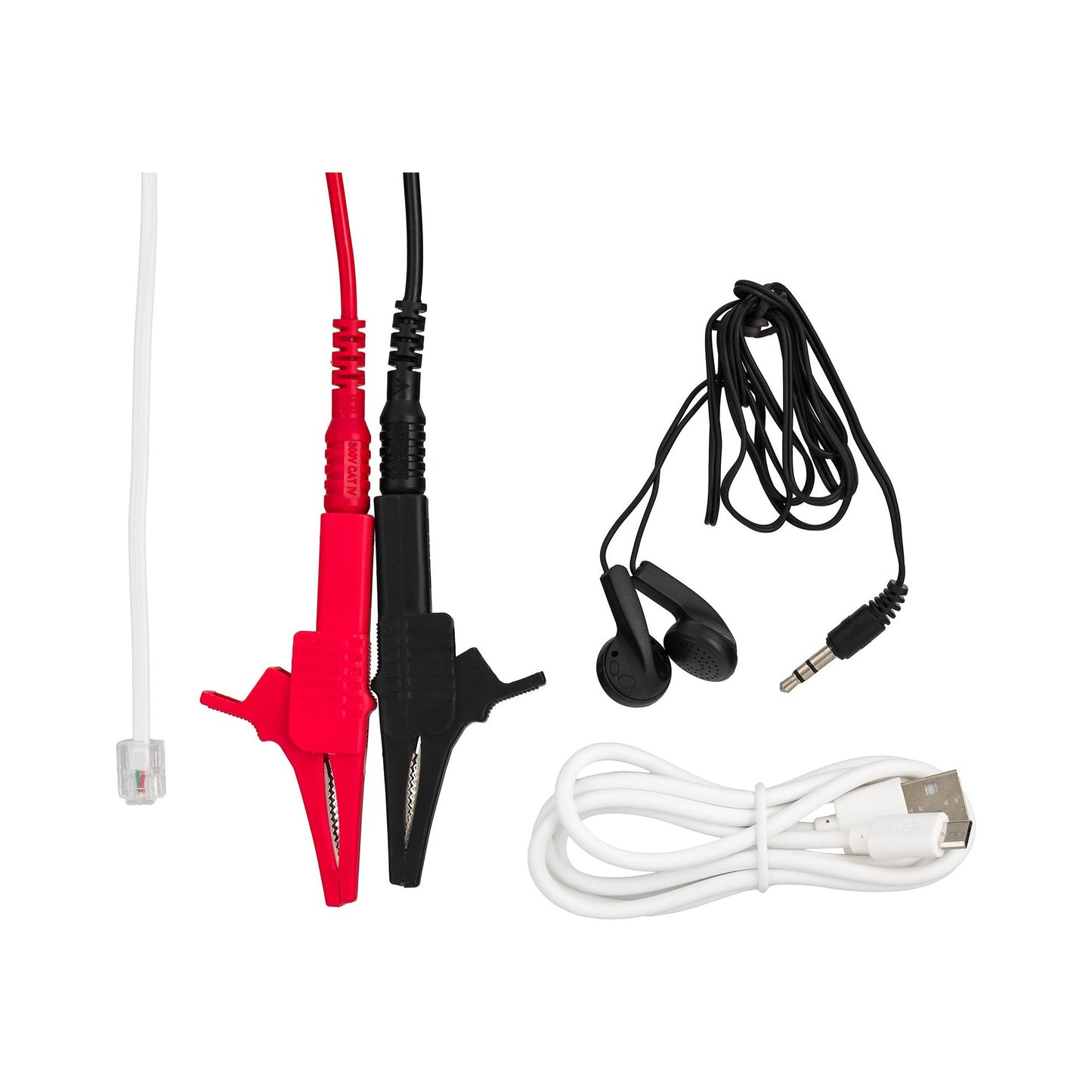

The kit includes:

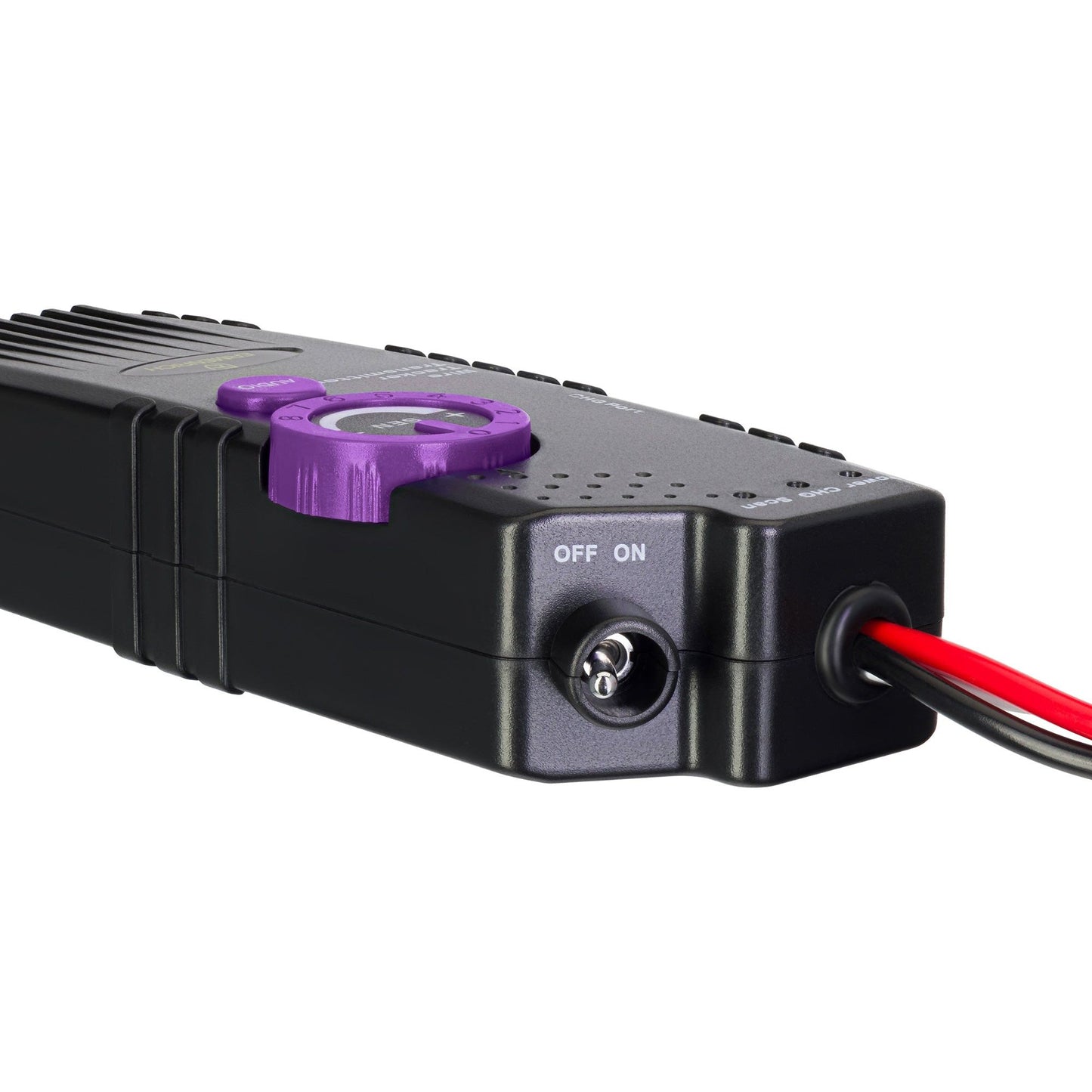

- Transmitter
- Receiver
- Micro USB cable
- Earbuds

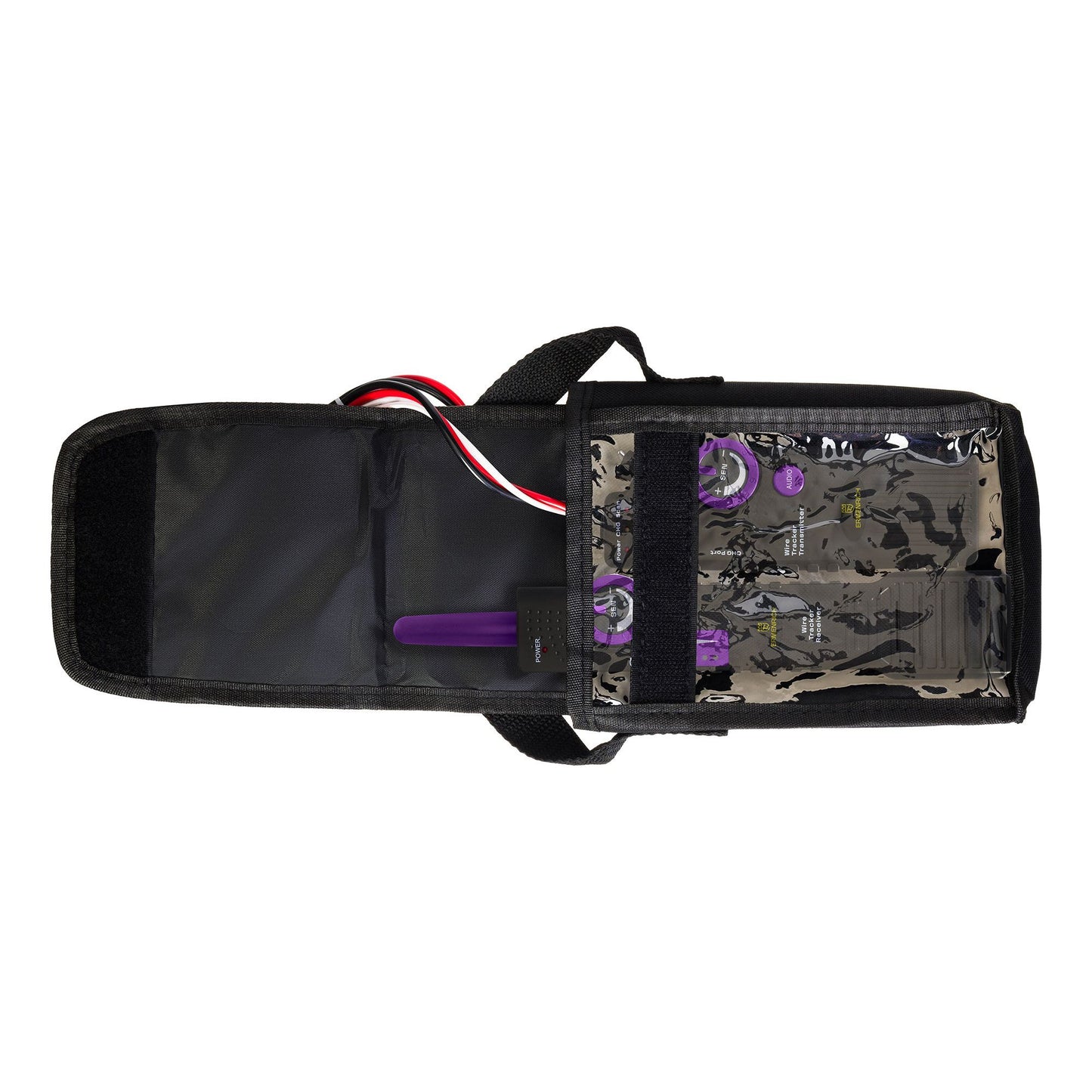

- Carry bag
- User manual and warranty card
| Brand | Ermenrich |
| Warranty | 1 vuosi |
| EAN | 5905555023090 |
| Package size (LxWxH) | 30x13x6 cm |
| Shipping Weight | 0.6 kg |
| Delimiter | Ermenrich Ping SM100 Wire Tracker |

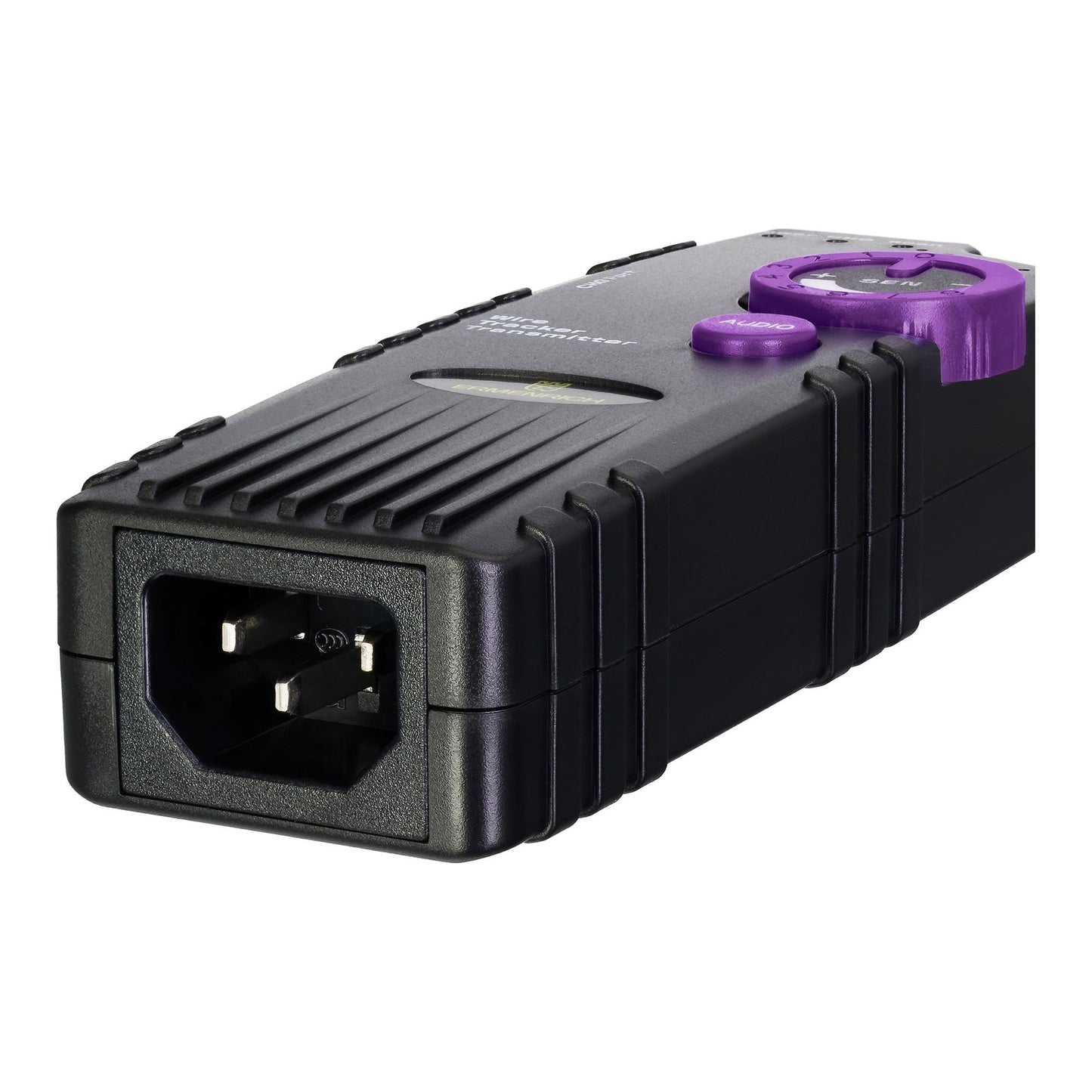

| === Delimiter === | Transmitter |
| Ports | microUSB, RJ11, power supply, alligator clips |
| Tracing cable types | telephone, coaxial, common wires, power cable, network cable |
| Maximum detection depth, m (ft) | 2 (6.6) |
| Maximum possible voltage of the circuit under test, V | 400 |
| Polarity test | yes |
| Crosstalk protection | yes |
| Maximum signal transmission distance, m (ft) | 10000 |
| Peak output signal voltage, V | 21 |
| Signal transmission format | multifrequency impulse |
| Adjustable sensitivity | yes |
| Maximum operating current, mA | <150 |

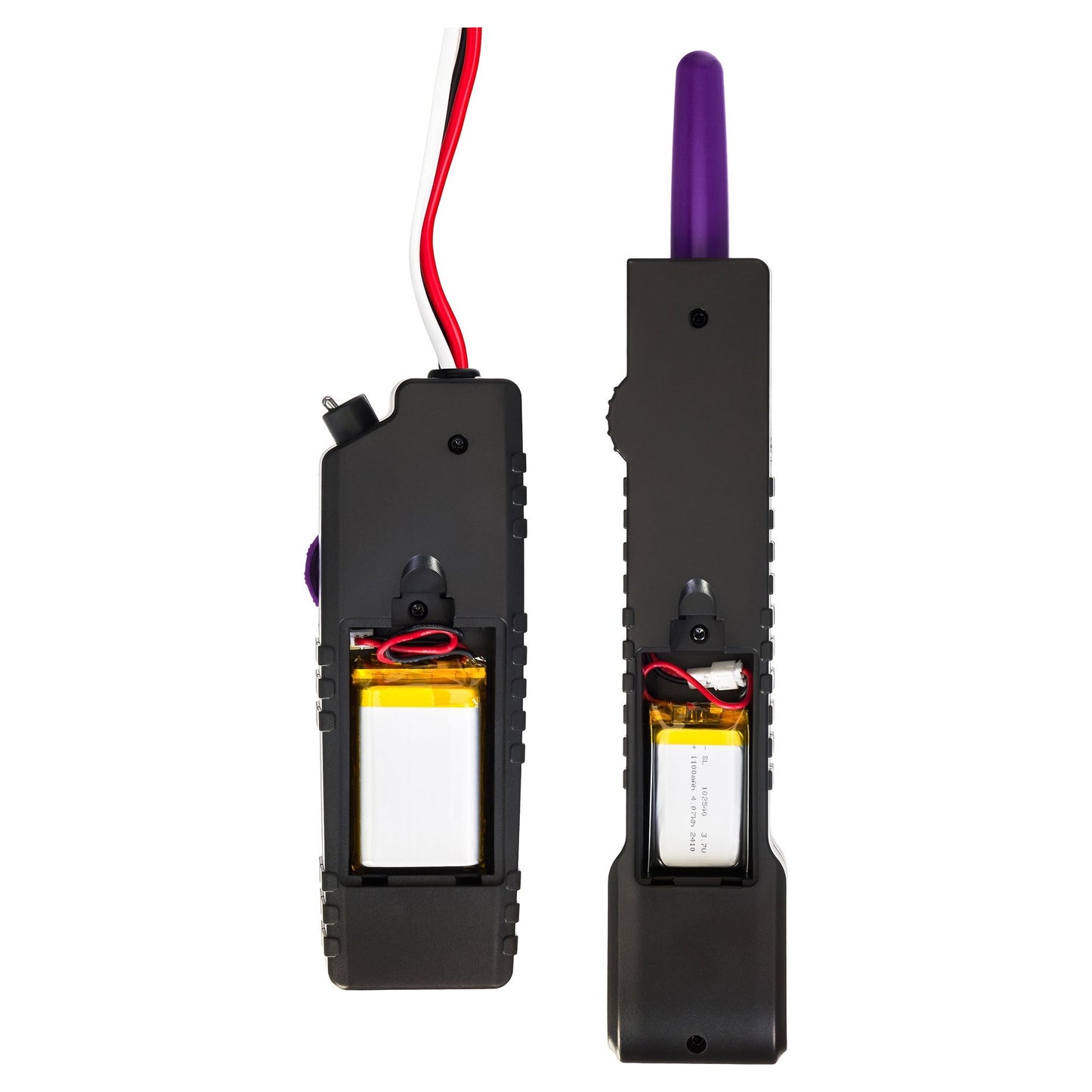

| Power supply | 1400mAh, 3.7V lithium battery; charging via 5V, 1A DC adapter (not included) and micro USB cable (included) |
| Low battery status indicator | yes |
| Operating temperature range, °C | -10 — 40 |
| Operating humidity range, % | 30 — 60 |

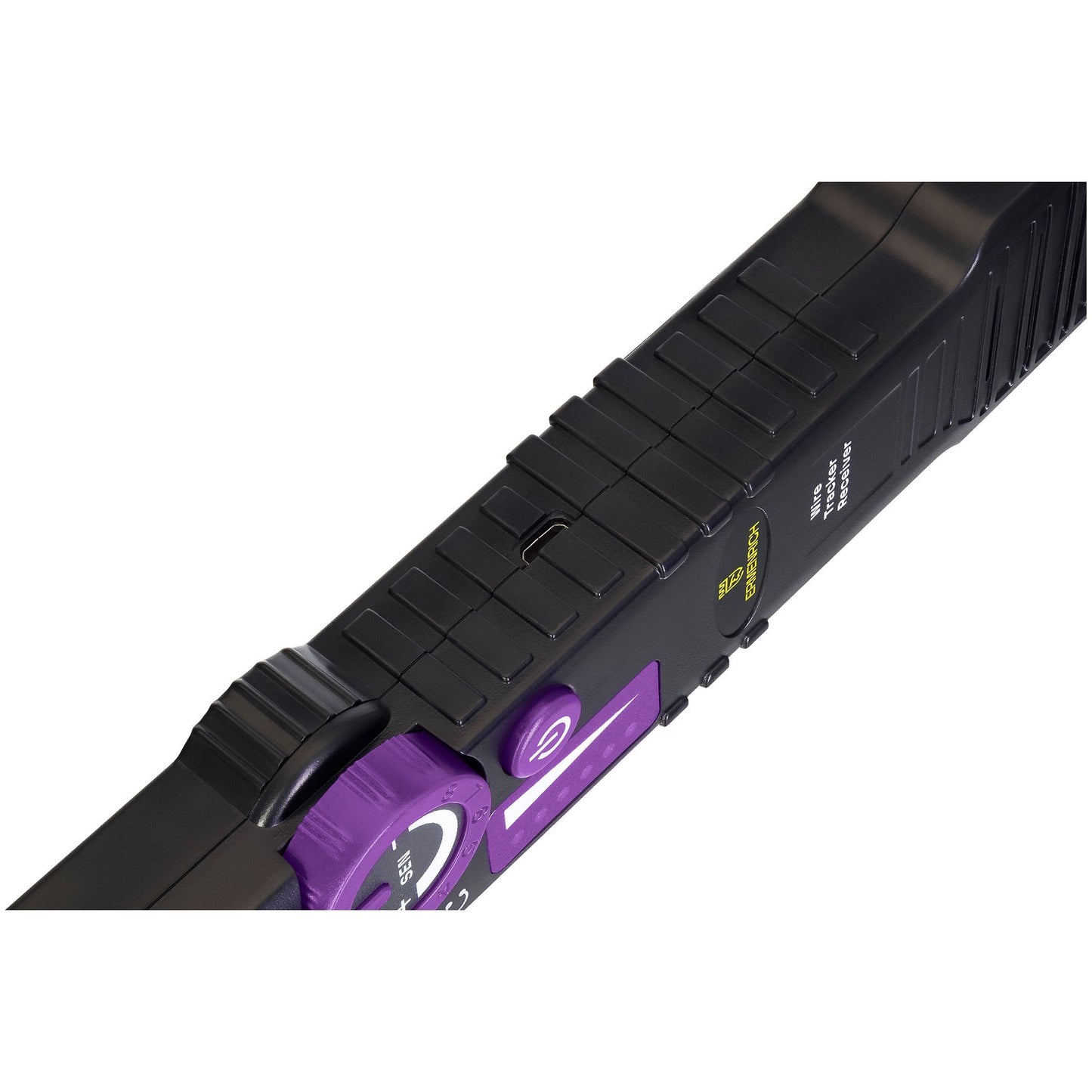

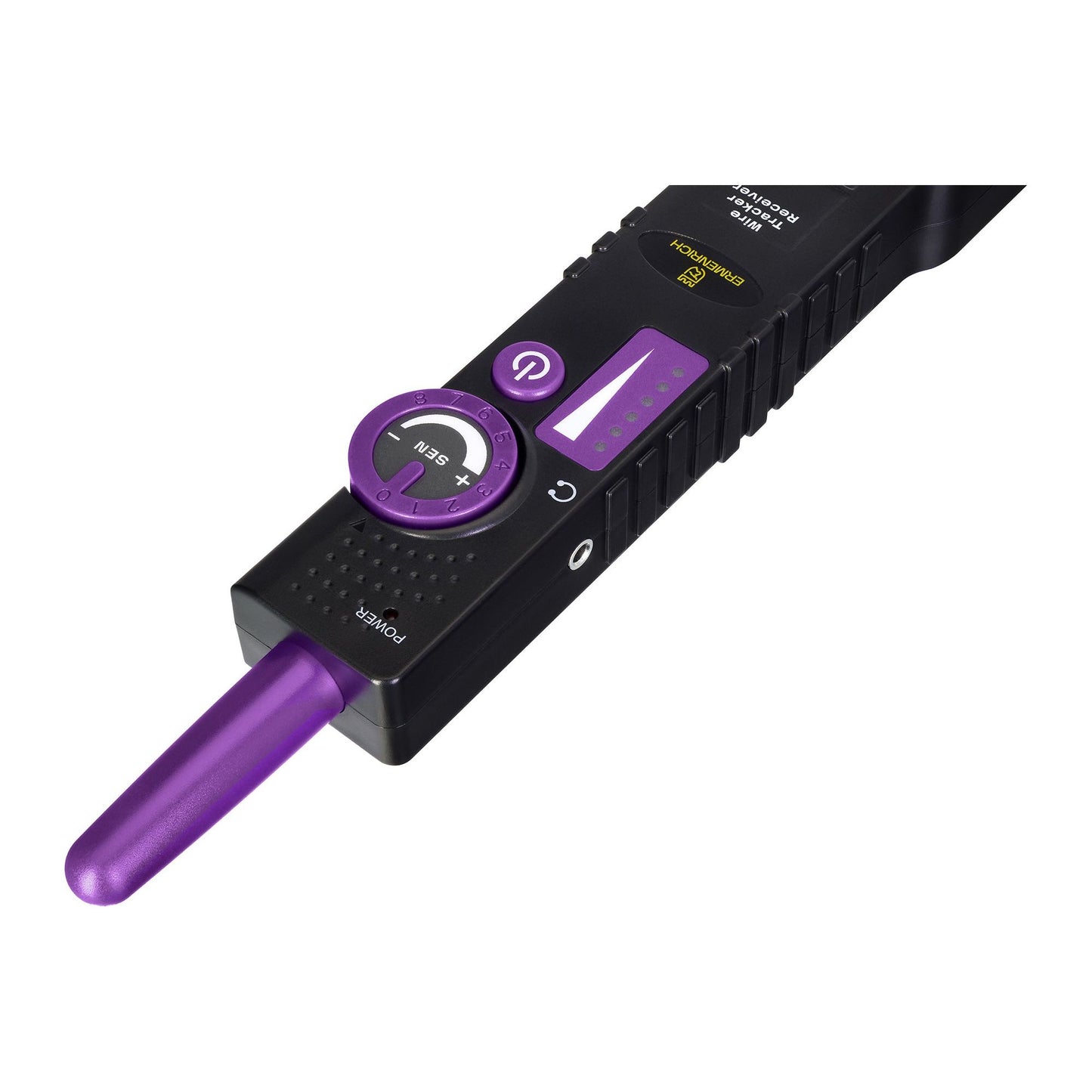

| === Delimiter === | Receiver / Remote unit |
| Ports | microUSB, earbuds |
| Maximum operating current, mA | <80 |
| Adjustable sensitivity | yes |
| Speaker | yes |
| Power supply | 1400mAh, 3.7V lithium battery; charging via 5V, 1A DC adapter (not included) and micro USB cable (included) |
| Low battery status indicator | yes |
| Operating temperature range, °C | -10 — 40 |
| Operating humidity range, % | 30 — 60 |
